HIT ECO-Chain sling, quality grade 10, 2-leg, can be shortened Standard load hook

HIT ECO-Chain sling, quality grade 10, 2-leg, can be shortened Standard load hook

Chain sling with shortening parallel hook and standard load hook for 2-leg attachment. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener can be used to individually adjust the length of the chain sling for ideal attachment under load. The coating of the chain and fixtures provides good corrosion protection.
  • Quality grade: 10
  • Shortening: can be shortened
Configure

HIT ECO-Chain sling, quality grade 10, 2-leg, can be shortened Standard load hook

HIT ECO-Chain sling, quality grade 10, 2-leg, can be shortened Standard load hook
Please login to see prices

Benefits

  • Hook safety latch closes and locks automatically
  • Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes
  • Horizontal alignment of the load in multi-leg attachment even with difficult transport procedures as well as suitable adjustment of the load for assemblies

Technical data

Quality grade

10

Legs Quantity

2-leg

Operating temperature

–40 °C to +200 °C = 100 % working load limit; below –40 °C = use not permitted; above +200 °C = use not permitted

Standard

  • EN 1677-compliant chain components
  • Chain following EN 818

    • Identification mark

  • "Quality grade no. ""10"" (every 300 mm on the chain)"
  • Quality grade and working load limit symbol

    • Marking

    Batch number and serial number

    Safety factor

    4

    Chain surface

    coated

    Chain color

    blue

    Structural element surface

    coated

    Structural element colour

    blue

    Shortening

    can be shortened

    Dimensions

    Downloads

    Description

    Product brochure

    FDI_PRODUCT_DOWNLOADS

    Product brochure

    FDI_PRODUCT_DOWNLOADS

    Applications

    Poster "Discarding time criteria"

    Poster

    Overview of the discarding time criteria for wire rope slings| lifting straps| round slings and chain slings.

    FDI_PRODUCT_DOWNLOADS

    Application table

    FDI_PRODUCT_DOWNLOADS

    Tranlsation of the Original Operating Instruction

    Original operating manual

    FDI_PRODUCT_DOWNLOADS
    • Benefits

      Benefits

      • Hook safety latch closes and locks automatically
      • Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes
      • Horizontal alignment of the load in multi-leg attachment even with difficult transport procedures as well as suitable adjustment of the load for assemblies
    • Technical data

      Technical data

      Quality grade

        10

      Legs Quantity

        2-leg

      Operating temperature

        –40 °C to +200 °C = 100 % working load limit; below –40 °C = use not permitted; above +200 °C = use not permitted

      Standard

      • EN 1677-compliant chain components
      • Chain following EN 818

      Identification mark

      • "Quality grade no. ""10"" (every 300 mm on the chain)"
      • Quality grade and working load limit symbol

      Marking

        Batch number and serial number

      Safety factor

        4

      Chain surface

        coated

      Chain color

        blue

      Structural element surface

        coated

      Structural element colour

        blue

      Shortening

        can be shortened
    • Dimensions

      Dimensions

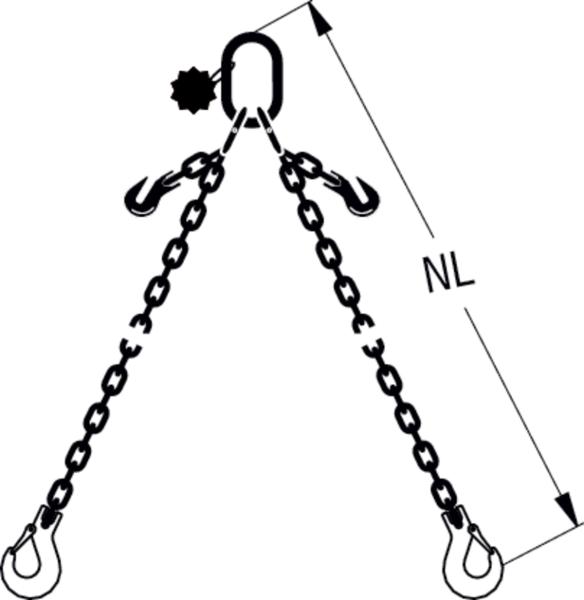

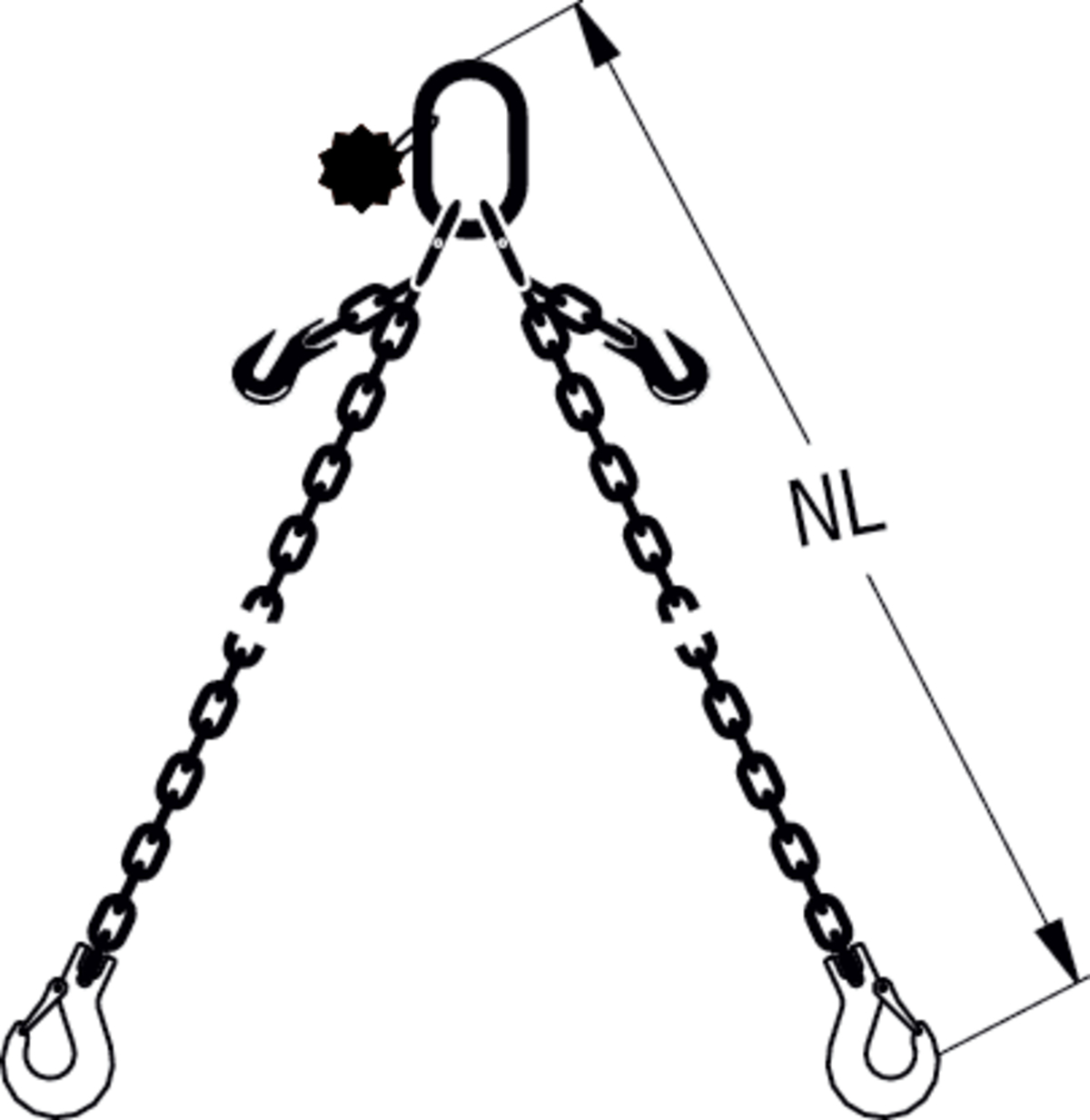

      Dimension picture

    • Downloads

      Downloads

      Description

      Product brochure

      FDI_PRODUCT_DOWNLOADS

      Product brochure

      FDI_PRODUCT_DOWNLOADS

      Applications

      Poster "Discarding time criteria"

      Poster

      Overview of the discarding time criteria for wire rope slings| lifting straps| round slings and chain slings.

      FDI_PRODUCT_DOWNLOADS

      Application table

      FDI_PRODUCT_DOWNLOADS

      Tranlsation of the Original Operating Instruction

      Original operating manual

      FDI_PRODUCT_DOWNLOADS
